AT-10A

AT-10A

Operating System:
Android 9
Storage:
eMMC 16 GB
Storage Expansion:
512 GB
RAM:
2 GB
LCD:
10.1" HD (1280 x 800), sunlight readable 800 nits

Rugged display for precision agriculture.

With a 10-inch 1000 nits touch screen, rich interfaces, Octa-core 1.8GHz processor, Adreno 506 GPU, etc., the AT-10A is highly performant and durable.



Bright Screen

1000-nits screen is readable in sunlit environments



 sunlight readable

GPS



Real-time communication

Built-in Wi-Fi/Bluetooth/GNSS/4G

Easily track and manage equipment status



Rich Interfaces

Video input, RS232, RJ45, CANBUS, GPIO etc. extended interfaces for connecting peripheral devices



 接口

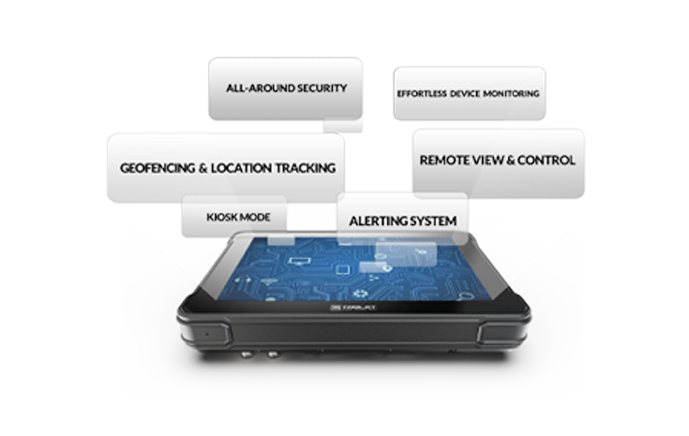

MDM

Mobile Device Management

Integrated with MDM software, making it convenient for users to control equipment status in real time and carry out remote control and management.

ISO 7637-II

Complies with ISO 7637-II standard transient voltage protection. Withstands up to 174V 300ms vehicle surge impact. Supports DC8-36V wide voltage power supply.







 ISO 7637



System

CPU: Qualcomm Cortex-A53 64-bit Octa-core Processor, 1.8GHz

GPU: Adreno 506 Supports OpenGL ES3.1

Operating System: Android 9.0

RAM: 2 GB LPDDR3 (Default)/4GB (Optional)

Storage: 16 GB eMMC (Default)/64GB (Optional)

Storage Expansion: Supports Micro SD up to 512 GB

Communication

Bluetooth: 4.2 BLE

WLAN: IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz

Mobile Broadband: LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)

GNSS: Standalone: 2.5m CEP, RTK (Optional): 2.5 cm+1 ppm Horizontally; 2.5 cm+1 ppm Vertically

Radio (UHF): Optional

Functional Module

LCD: 10.1 inch HD (1280 x 800), 1000 nits brightness, Sunlight readable

Touchscreen: Multi-touch capacitive touchscreen (Wet mode and glove mode are customizable.)

Sound: Built-in speaker 2W, 8Ω 90dB, Internal Microphones

Interfaces: Type-C, Compliant with USB 3.0, (For data transfer; support OTG), USB (TYPE-A), Headset jack ×1

Sensors: Acceleration sensors, Ambient light sensor, Compass

Functional Module Environment

Vibration test: MIL-STD-810G

Dust resistance test: IP6x (IEC60529)

Water resistance test: IP6x & IPx7 (IEC60529)

Operating temperature: -20°C ~ 65°C (-4℉ ~ 149℉)

Storage temperature: -20°C ~ 70°C (-22℉ ~ 158℉)

Interface

RS232: ×2

RS485: ×1

ACC (ignition): ×1

CANBUS: CAN 2.0b ×2

GPIO: Input ×4, Output ×4

RJ45 (10/100): ×1

AHD input (optional): ×2 (1080P)

Analog input: ×1 (Measure Voltage Range: 0~30V)

Physical Characteristics

Power: DC8-36V (ISO 7637-II compliant)

Physical Dimensions (WxHxD): 273×183×49mm

Weight: 1.6kg
