AT-10AL

AT-10AL

Operating System:
Yocto
Storage:
eMMC 16 GB
Storage Expansion:
128 GB
RAM:
2 GB
LCD:
10.1" HD (1280 x 800), sunlight readable 1000 nits

10 inch in-vehicle rugged tablet powered by Linux

The AT-10AL's features of wet touch, glove touch, and 10F supercapacitor greatly improve work efficiency and user experience in applications such as agriculture, mining and construction.



Bright Screen

1000-nits screen is readable in sunlit environments

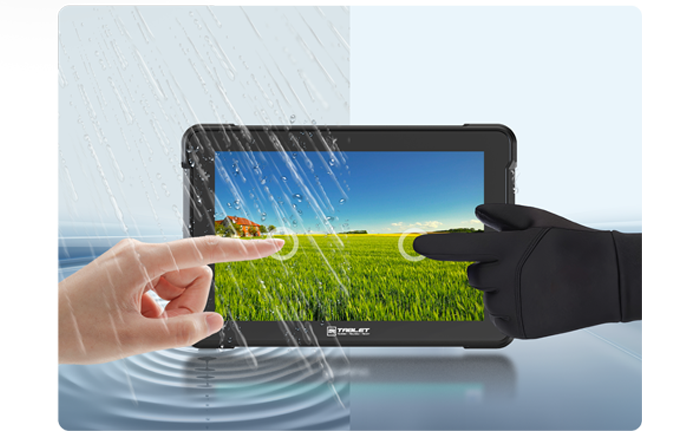

Wet Touch and Glove Touch

Supports wet touch and glove touch function, ensuring excellent responsiveness even with wet fingers and gloves.



Qt Platform

Qt platform provides a cross-platform C/C++ graphical user interface application development framework, which has strong scalability and is convenient for software development.




Real-time Communication (optional)

Built-in Wi-Fi/Bluetooth/GNSS/4G functions. Easily track and manage the equipment status.

ISO 7637-II

Complies with ISO 7637-II standard transient voltage protection. Withstands up to 174V 300ms vehicle surge impact. Supports DC8-36V wide voltage power supply.







 ISO 7637





Rich Interfaces

RS232, RJ45, RS485, CAN, GPIO extended interfaces for connecting peripheral devices.


System

CPU: NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6GHz

GPU: 1× shader, Vivante GC320, Vivante GCNanoUltra

Operating System: Yocto

RAM: 2 GB LPDDR3 (Default)/4GB (Optional)

Storage: 16 GB eMMC (Default)/64GB (Optional)

Storage Expansion: Micro SD 128 GB

Functional Module

LCD: 10.1 inch HD (1280×800), 1000 nits, Sunlight readable

Screen: Multi touch capacitive touchscreen supporting glove and rain mode

Sound: Build-in speaker 2W, 90dB

Internal Microphones

Interfaces: Type-C, Compliant with USB 2.0 (For data transfer; Support OTG), USB 2.0 (Type-A), 3.5mm headphone jack

Sensors: Acceleration sensors, Ambient light sensor, Gyroscope, Compass

Environment

Vibration Test: MIL-STD-810G

Dust Resistance Test: IP6x (IEC60529)

Water Resistance Test: IPx7 (IEC60529)

Operating Temperature: -20°C ~ 65°C (-4°F ~ 149°F)

Storage Temperature: -30°C ~ 70°C (-22°F ~ 158°F)

Communication (Optional)

Bluetooth: BLE5.0 (Optional)

WLAN: IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz (Optional)

Mobile Broadband: LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Optional)

GNSS: GPS/GLONASS (Optional)

Physical Characteristics

Power: DC9-36V (ISO 7637-II compliant)

Battery: 10F Supercapacitor

Physical Dimensions: 273 × 183 × 49 mm

Weight: 1.6kg

Extended interface

RS232: × 2

ACC: × 1

Power: × 1

Can: × 1

GPIO (Positive Trigger Input): Input × 4, Output × 4

RJ45 (10/100): × 1 (1000M)

RS485: × 1

Analog Input: × 1
