7 Inch Rugged Android Tablet with Multi-channels AHD Camera Inputs

Powered by Android 13 system and octa-core processor, it perform well in various vehicle-related applications. With multi-channels AHD camera inputs, it shows great value in auxiliary driving.

Features

	Android 13 Equipped with the powerful new Android 13 system, the tablet boasts richer functions and stable performance to meet a wider range of application requirements.
Real-time Communication It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT4, WiFi/BT and NFC communication modules, which is convenient for tracking and management.

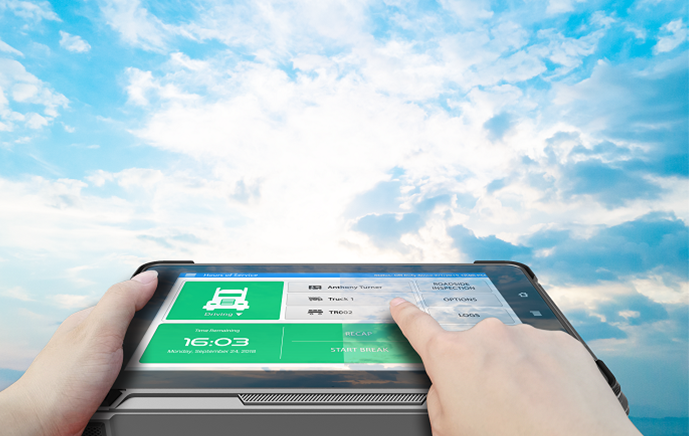

	Ultra-bright Screen The 7-inch 1000-nit display ensures better visual experience even in strong light environment.
Rugged and Reliable Design Comply with IP67 ratings and MIL-STD-810G standard, the tablet keeps stability and reliability in various harsh environmental applications.
	Multi-channel Video Surveillance (Optional) Supports AHD 720P/1080P video inputs with real-time preview and recording capabilities. The GPIO inputs are configurable for custom screen display switching. A 1TB micro SD card slot is integrated to accommodate high-capacity storage requirements.
Rich Functional Interfaces Support rich interfaces such as RS232, USB, ACC, LAN and CANBUS, and two custom function buttons. Make it highly integrated with rich functions to be applied to various application scenarios.
	ISO 7637-II Apply DC8-36V wide voltage power input design. Comply with ISO 7637-II transient voltage protection standard, which can withstand up to 174V 350ms vehicle surge impact.
Mobile Device Management MDM software can be deployed on the tablet, enabling users to conduct more in-depth device and application management.
	Wide Temperature Work Design This tablet can operates in temperatures ranging from -20°C to 65°C and be stored in temperatures from -30°C to 75°C. It can be sold and used in most parts of the world.

Accessories


Torx Wrench & Screws for RAM/SIM Card Plug	SIM Card Pin & Tweezer for Card	Extended Cable Port A (optional)	Extended Cable Port B (optional)	RAM 1" Double Ball Mount with Backing Plate

RJ45 Cable (optional)	USB Type-A Cable (optional)	USB Type-C Cable (Optional)	Power Adaptor (Optional)

Product Video

System
CPU	Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53,1.8GHz
GPU	Adreno 610
Operating System	Android 13
RAM	LPDDR4 4GB (default)/8GB (optional)
Storage	eMMC 64G (default)/128GB (optional)
LCD	7 Inch Digital IPS Panel, 1280×800, 1000 nits
Screen	Multi-point Capacitive Touch Screen
Audio	Integrated microphone; Integrated speaker 2W
Camera	Front: 5.0 megapixel camera (optional)

Interface (On Tablet)
USB	×1 USB 3.1 Type-C (can not be used together with USB Type-A), and it does not support charging the built-in battery
Micro SD Slot	×1 Micro SD card, Supports up to 1T
SIM Socket	×1 Nano SIM Card slot, eSIM Card (optional)
Ear jack	3.5mm headphone jack compliant with CTIA standard
Connectors (optional)	Port A-26PIN, Port B-26PIN (Amphenol), M8-4PIN×2

Extended Cable
RS232	×2
RS485	x1
CANBUS	x1 CANBUS_1
CANBUS	x1 CANBUS_2 (optional) (Occupy the function of RS232_2)
GPIO	x3 GPIO Input, x3 GPIO Output
ACC	×1 (0-36V)
RJ45	×1 (100 Mbps) (optional)
Power Input	×1 (8-36V), the system can read the power input voltage.
Power Output	×1 (8-36V), power input loops out power output, max-current 1A, controlled by system
Video Input	×4/×6 (optional), AHD 720P/1080P, PAL/NTSC, with 12V 500mA output for AHD camera power.
GPIO Input	×6 (optional), Support functions like enlarging the AHD camera preview screens after triggering IO.

Communication
GNSS	GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna

Mobile Broadband (NA Version)	LTE FDD: B2/B4/B5/B7/B12/B13/B14/
	B17/B25/B26/B66/B71
	LTE-TDD: B41, Internal Antenna; SMA Antenna (optional)

Mobile Broadband (EM Version)	EM Version: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
	LTE TDD: B38/B39/B40/B41
	WCDMA: B1/B2/B4/B5/B8
	GSM: 850/900/1800/1900 MHz, Internal Antenna;
	SMA Antenna (optional)

WIFI	802.11a/b/g/n/ac; 2402~2482 MHz, 5180~5825 MHz, Internal Antenna; Fraka Antenna (optional)

Bluetooth	2.1 + EDR/ 3.0/ 4.1 LE/ 4.2 BLE/ 5.0 LE, Internal Antenna; SMA Antenna (optional)
Bluetooth
NFC (Optional)	Operates at 13.56MHz (HF)
	ISO/IEC 14443A, ISO/IEC 14443B PICC mode
	ISO/IEC 14443A, ISO/IEC 14443B PCD mode
	designed according to NFC Forum
	digital protocol T4T platform and ISO-DEP
	FeliCa PCD mode
	MIFARE PCD encryption mechanism (MIFARE 1K/4K)
	NFC Forum tags T1T, T2T, T3T, T4T and T5T
	NFCIP-1, NFCIP-2 protocol
	NFC Forum certification for P2P, reader and card mode
	FeliCa PICC mode
	ISO/IEC 15693/ICODE VCD mode
	NFC Forum-compliant embedded T4T for NDEF short record

Physical Characteristics
Power	DC8-36V (ISO 7637-II compliant)
Battery	3.7V, 2800mAH removable battery
Physical Dimensions	210.2×140.2×42.3mm (W×H×D)
Weight	885g
IP rating	IP67 (IEC 60529)
Vibration test	MIL-STD-810G
Work temperature	-20°C ~ 65°C (-4°F ~ 149°F)
Storage temperature	-30°C ~ 75°C (-22°F ~ 167°F)
