VT-7

VT-7

Operating System:
Android 7.1.2
Storage:
16 GB eMMC
Storage Expansion:
64 GB TF card expansion
RAM:
2 GB
LCD:
7" HD (1280 x800), sunlight readable 800cd/m²

VT-7 is a tablet designed to satisfy the vehicle market's demand for cost-effective and rugged applications. It supports multiple connection methods, such as 4G LTE, 2.4G / 5.8G WIFi, Bluetooth 4.2, GPS / GLONASS, NFC etc. Designed to operate in a harsh automotive environment, including a wide range of temperatures, vibrations and shocks. It is ideal for fleet management, taxi dispatch, agricultural vehicles, school buses and special trucks.







FEATURES





Truck data reading

The truck data can be read steadily through the J1939 / OBD II interface. Easily collect Engine hours, Vehicle miles, Vehicle identification data, etc.



Multiple connection

With 4G LTE/WIFI (2.4G & 5.8G) / Bluetooth (4.2 BLE) / NFC / GNSS connectivity options, it is ideal for fleet management and bus industry.



In-cab & Portable

With a strong docking station, rugged tablet, IP66 waterproof design, whether it is used in the cab or outdoors, there is no problem.

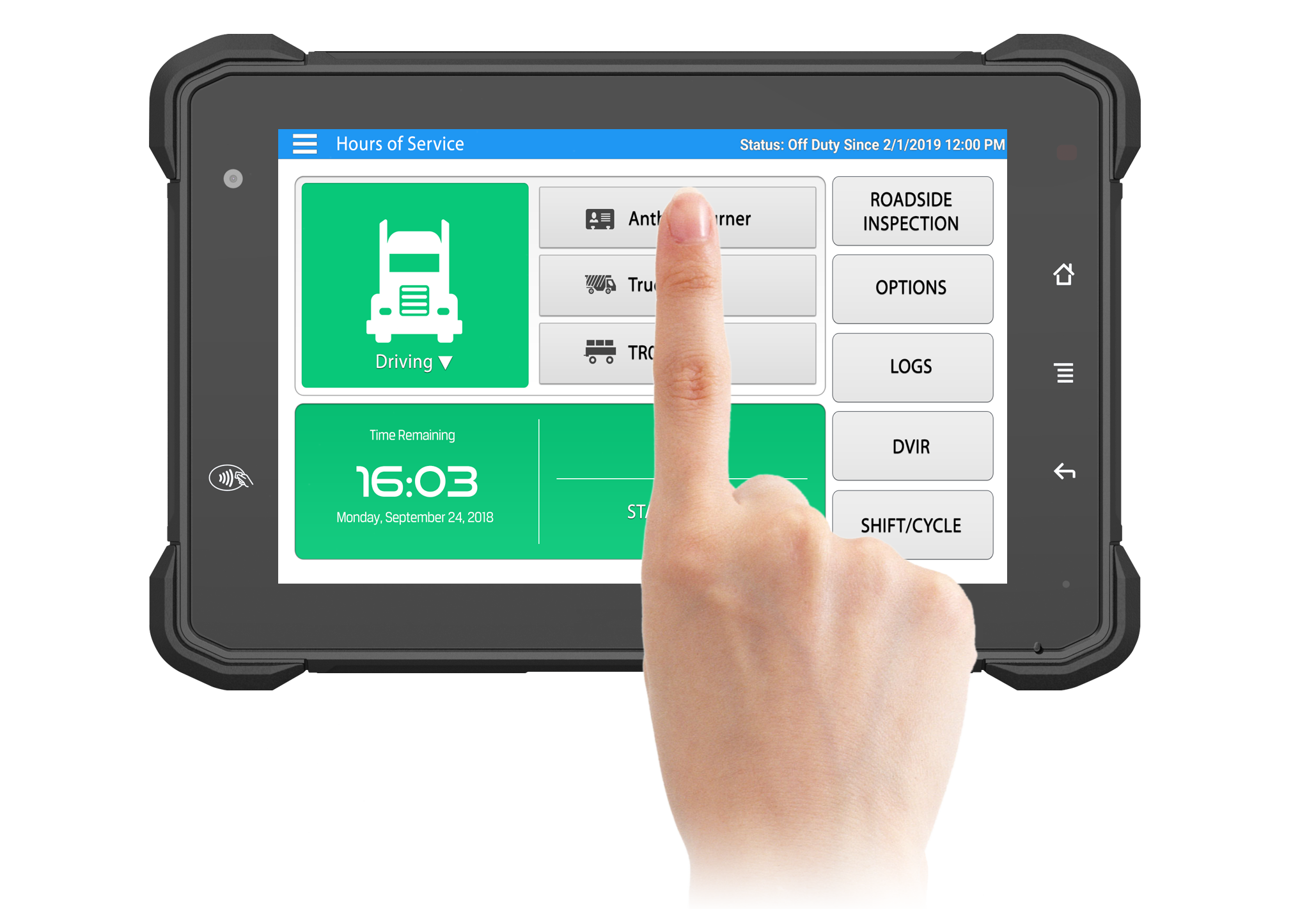

ELD made easy

With SAE J1939/OBD-II interfaces, record data automatically and be compliant with multiple HOS rules (FMCSA) including Property/Passenger 60-hour/7 days & 70-hour/8-day.

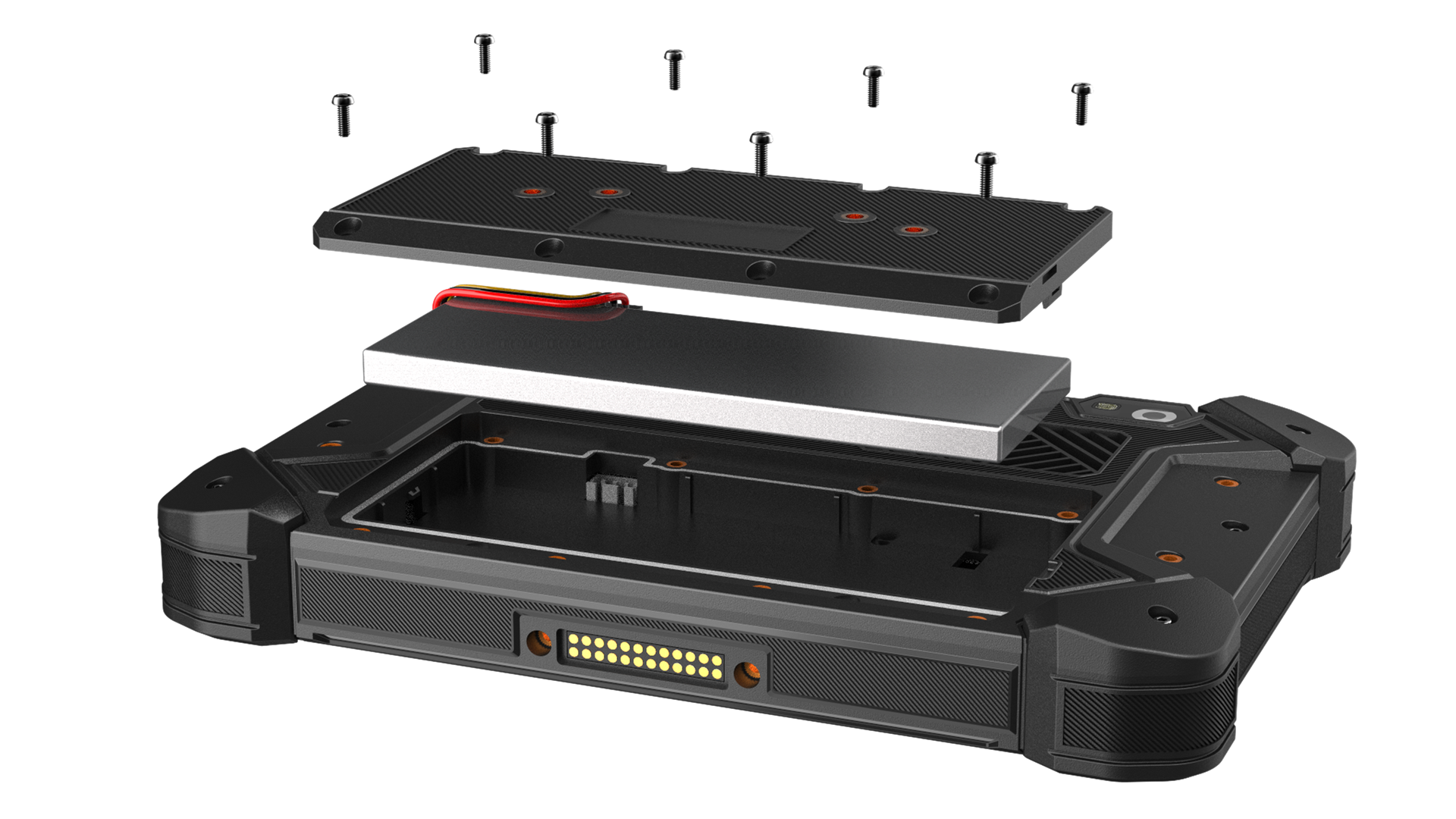

Replaceable battery

Built-in Li-polymer battery makes the tablet convenient for portable use 5000mAh of battery capacity supports the tablet work for 5 hours in operation mode. Easily replace a new battery by maintenance personnel.

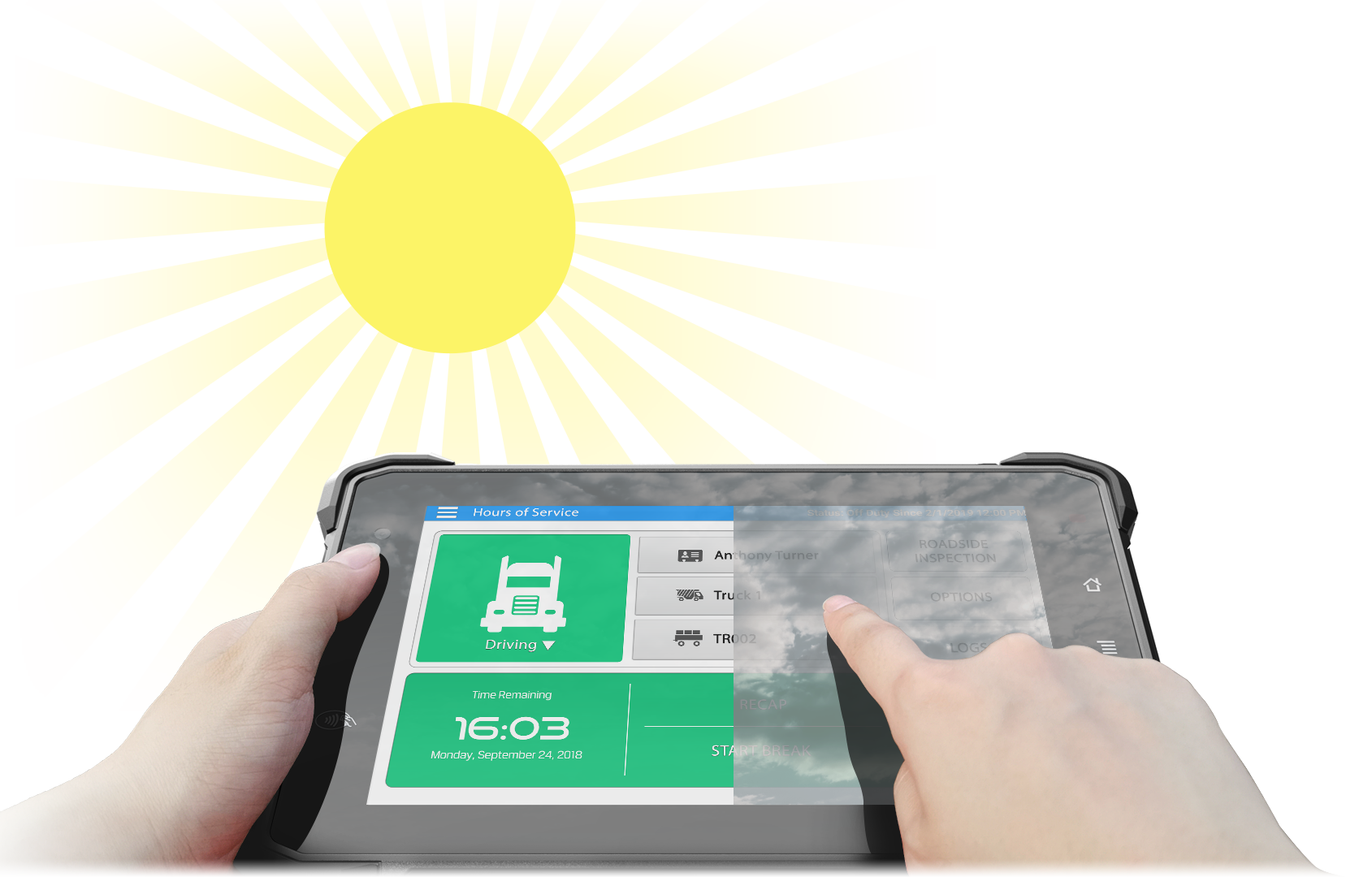

Sunlight readable screen

800cd/m² higher brightness specifically in bright conditions with indirect or reflected bright light in harsh environment both in and out-of-vehicle.

10-point multi-touch screen allows for zooming, scrolling, selecting, and provides a more intuitive and seamless user experience.

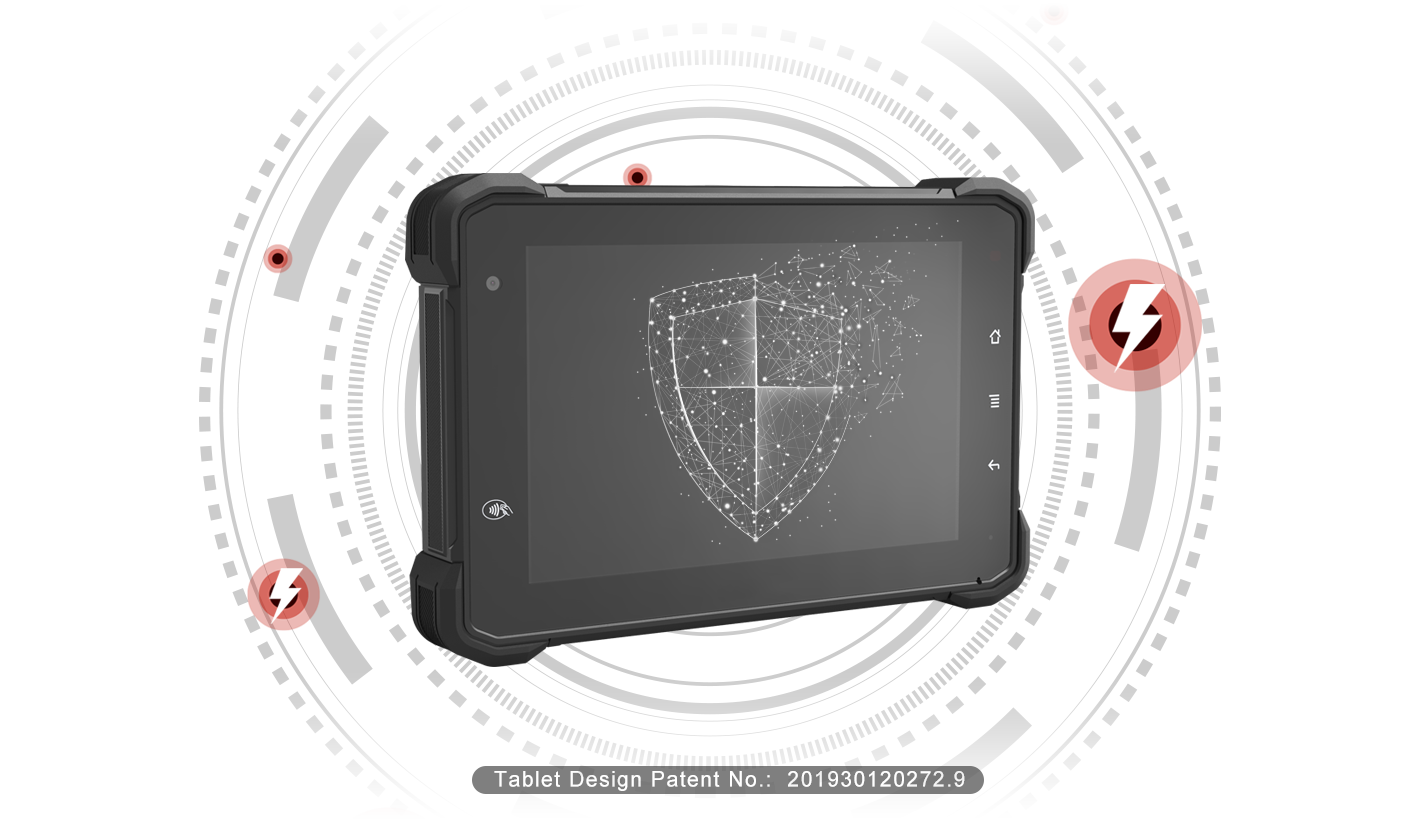

All-round ruggedness

TPU material corner drop protection provides all-round protection for tablet.

Compliance with IP66 rating dustproof and waterproof, 1.5m drop resistance, and anti-vibration and shocks standard by US Military MIL-STD-810G.

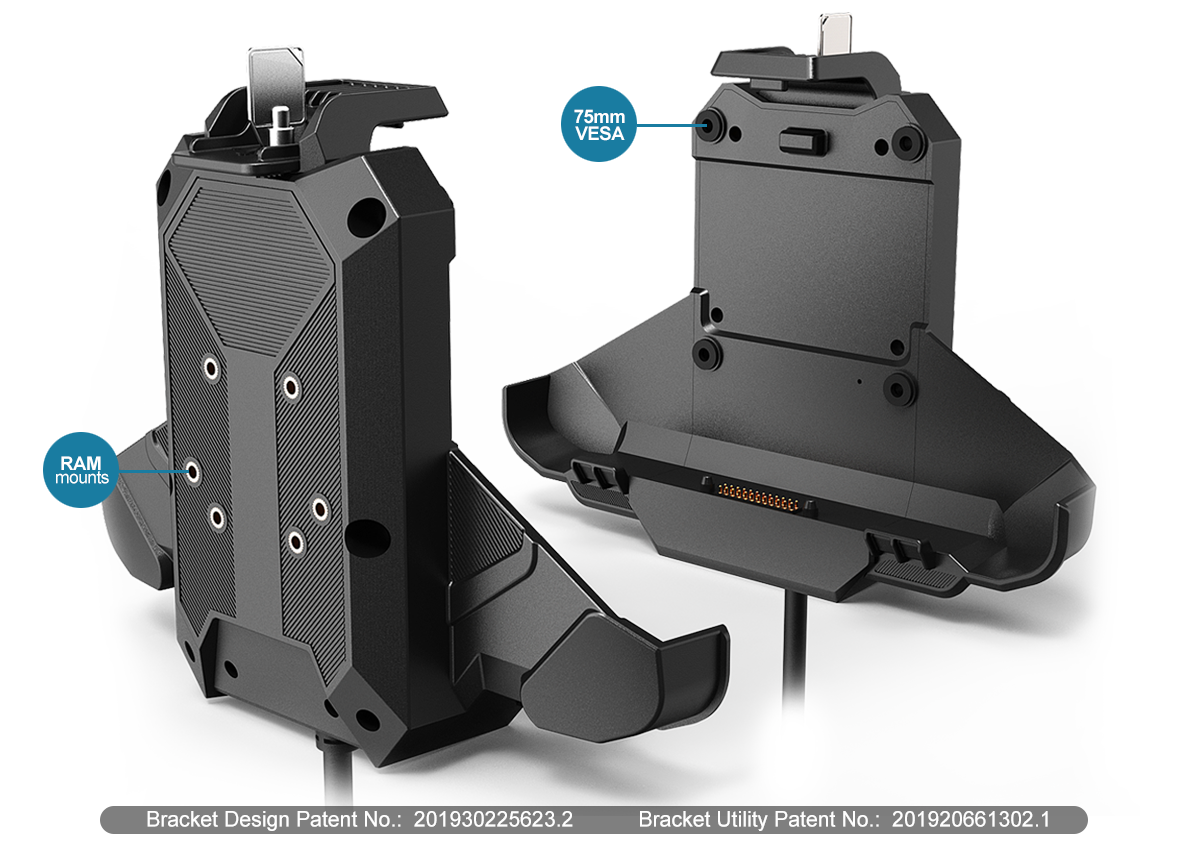

Docking Station

Security lock holds the tablet tightly and easily, ensures the safety of tablet. Built-in smart circuit board to support SAEJ1939 or OBD-II CAN BUS protocol with memory storage, compliance with ELD/HOS application.

Support rich extended interfaces according to customer ‘s requirements, such as RS422, RS485 and LAN port etc.








Mobile Computing Platform

Qualcomm Quad-core processor, 1.1GHz

Operating System

Android 7.1.2

RAM

2 GB

Storage

16 GB eMMC (up to 64G TF card expansion)

LCD

7" HD (1280 x800), sunlight readable 800cd/m²

Touchscreen

10 point multi touch capacitive touchscreen

Camera

front:2 MP

Rear: 8 MP rear camera with LED light

Bluetooth

BT4.2 LE

WLAN

IEEE 802.11a/b/g/n; 2.4GHz/5GHz

Mobile Broadband

LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)

GNSS

GPS/GLONASS

NFC

Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 & 424

kbit/s, MIFARE 1K, 4K

NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693

All peer-to-peer modes

Card Emulation Mode (from host): NFC Forum

T4T (ISO/IEC 14443 A&B) at 106 kbit/s

Sound

Build-in speaker 2W x 1 85dB

internal microphones x1

Interfaces

Standard

RS232 X2

GPIO Input ×2 output ×2

RS485 × 1 optional

RS422 × 1 optional

USB Type-A

ACC × 1

OBD II

OBD II

RS232 X1

GPIO Input ×2 output ×2

USB Type-A

ACC × 1

J1939

J1939

RS232 X1

GPIO Input ×2 output ×2

USB Type-A

ACC × 1

Sensors

Acceleration sensors, ambient light sensor

Power

Battery: User replaceable Li-ion 5000 mAh

Battery operating time: 5h(typical)

DC 8-36V (ISO 7637-2 Compliant)

Buttons

Power on/off button: x1

Mouting

75mm vesa/ RAM

Physical Dimensions (WxDxH)

200W x 130H x 28.5D

Weight

785g

Testing Standards

Gravity drop resistance test: 1.5m

Vibration test: MIL-STD 810G

Dust resistance test: IP6x

Water resistance test: IPx6

Operating temperature:-10° C ~ 65° C (0° C ~ 55° C(charging)

Storage temperature: -20° C ~70° C
