VT-7A

VT-7A

Operating System:
Android 12
CPU:
Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz
RAM:
LPDDR4 3GB (default)/4GB (optional)
Storage:
eMMC 32GB (default)/64GB (optional)
Display:
7" HD (1280 x 800), sunlight readable 800 nits

New 7 inch rugged and feature-rich tablet.

Powered by Android 12 system, VT-7A has powerful performance and rich multimedia functions.

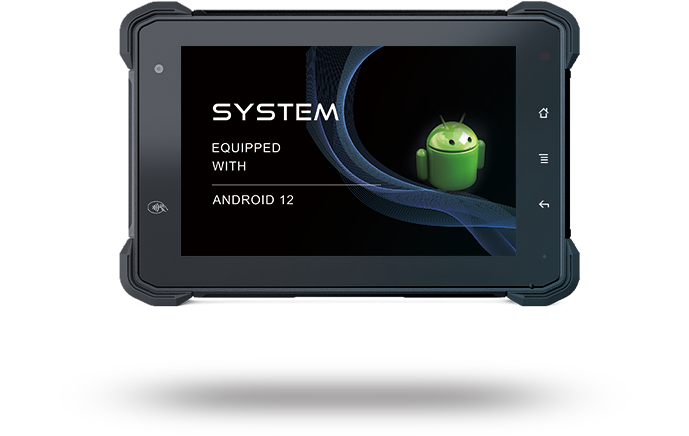

High Version Android OS

Powered by the new Android 12 system. The superior performance brings users a brand new experience.



Android12-1
MDM1

Mobile Device Management

Integrated with MDM management software, the VT-7A supports device management, mass deployment and upgrade, and other device management features.

Real-time Communication

Built-in Wi-Fi/ Bluetooth /GNSS/4G functions make tracking and management of device status easier.



4G1
ip67

IP67 Rugged Design

Rugged IP67 design and 800 nits high brightness screen guarantee the application in a variety of harsh environments characteristic of vehicle, logistics, security and other industries.

ISO 7637-II

ISO 7637-II standard transient voltage protection

Withstands up to 300ms of 175V surge impact

DC8-36V wide voltage power supply







iso


Accessories

Allen Wrench Screws for RAM SIM Card Plug USB to Type-C Cable RAM 1" Double Ball Mount with Backing Plate Power Adaptor
Allen Wrench Screws USB Cable RAM 1" Double Ball Mount (Optional) Power Adaptor (Optional)



Product Video



Downloads:

Data Material: VT-7A Data Material

User Manual: VT-7A User Manual

System
CPU Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz
GPU AdrenoTM 702
Operating System Android 12
RAM LPDDR4 3GB (default)/4GB (optional)
Storage eMMC 32GB (default)/64GB (optional)
LCD 7" HD (1280×800), sunlight readable 800 nits
Screen Multi-point Capacitive Touch Screen
Audio Integrated microphone, Integrated speaker 2W
Camera Front: 5.0 megapixel camera (optional)
Rear: 16.0 megapixel camera (optional)



Interface (On Tablet)
USB Type-C (Input: 5V 1A Max)
Micro SD Slot ×1 Micro SD card, Supports up to 1T
SIM Socket NA
Ear jack 3.5mm
Docking Connector POGO PIN×24
Sensors Acceleration, Gyro Sensor, Compass, Ambient Light Sensor



 Extended Interface (Docking Station)
RS232 ×2
ACC ×1 (0-30V)
Power ×1 (8-36V)
GPIO ×3 Input, 3x Output
USB TYPE-A  x1 USB 2.0 Type A, (can not be used together with USB Type-C)
Analog Input ×2 (optional)
CAN BUS 2.0, J1939, OBD-ll ×1 (1 of 3 optional)
RS485 ×1 (optional)
RJ45 ×1 (optional)
AV Input ×1 (optional)



Communication
GNSS GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna; External SMA antenna(optional)

Mobile Broadband (NA Version) LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE-TDD: B41
LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28

Mobile Broadband (EM Version) LTE TDD:B38/B40/B41
WCDMA:B1/B2/B4/B5/B8
GSM/EDGE:850/900/1800/1900 MHz

WIFI 802.11a/b/g/n/ac;2.4GHz&5GHz
Bluetooth 2.1 EDR/3.0 HS/4.2 LE/5.0 LE
NFC (Optional) Supports Type A,B, FeliCa, ISO15693 etc.



Physical Characteristics
Power DC 8-36V (ISO 7637-II compliant)
Battery 3.7V, 5000mAh battery (only for docking station version)
Physical Dimensions  207.4×137.4×30.1mm (W×H×D)
Weight 810g
IP rating IP67 (IEC 60529)
Vibration test
MIL-STD-810G
Work temperature -10°C ~ 65°C (14°F ~ 149°F)
Storage temperature -20°C ~ 70°C (-4°F ~ 158°F)
