VT-7A Pro

VT-7A Pro

Operating System:
Android 13 (GMS)
CPU:
Qualcomm 8-core, 4×A73, 2.0GHz and 4×A53,1.8GHz
RAM:
LPDDR4 4GB (default)/8GB (optional)
Storage:
eMMC 64G (default)/128GB (optional)
Display:
7 Inch LCD Digital IPS Panel, 1280×800, 1000 nits

7-inch In-vehicle Rugged Tablet for Various Industrial Applications

VT-7A Pro adopts advanced Android 13 operating system, a octa-core processor and larger storage space, which effectively enhances the performance of multi-tasking and improve the user experience and work effect.

Features

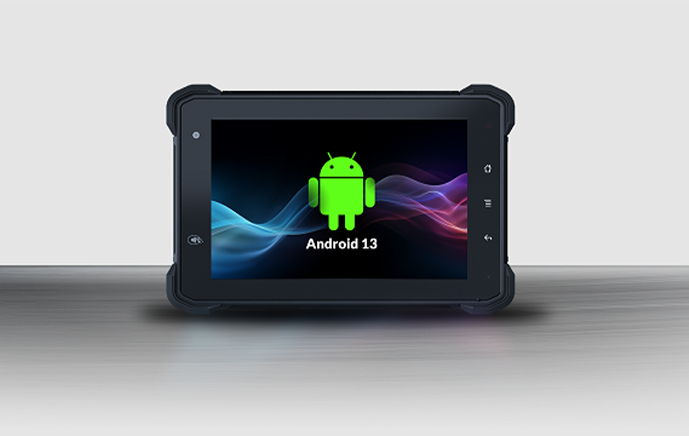

Android 13 (GMS)

With GMS official certification, users can make full use of the services provided by Google. And the certification also ensures the functional stability and compatibility of the device.

Rugged and Durable

Comply with IP67 waterproof and dust proof rating, 1.2m drop resistance, MIL-STD-810G shockproof and impact-resistant standard.

IP67 rugged tablet
800

High Brightness Screen

The 7-inch screen with 1280*800 resolution and 1000 nits brightness, ensuring that users can clearly identify the content on the screen in an outdoor environment.

Real-time Communication

It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT4 communication module, which is convenient for tracking management.

4G GPS Tablet
ISO

ISO 7637 -II

ISO 7637-II transient voltage protection standard, which can withstand 174V 300ms automobile impact. With the design of a wide voltage range DC8-36V power supply to improve the reliability and stability.

Mobile Device Management

Support most MDM software on the market, which is convenient for customers to control and manage equipment in real time.

MDM
接口

Rich Interfaces

It has rich interfaces such as RS232, USB, ACC, etc., and is suitable for various kinds of vehicle. We also provide the customized services for required functional interfaces.

OTA

Our technical team will update the security patch to the terminal devices every 3 months.

OTA



Accessories

screws torx wrench USB TYPE-C 适配器 支架
Screws Torx Wrench (T6, T8, T20) USB Cable Power Adaptor (Optional) RAM 1" Double Ball Mount with Backing Plate (Optional)



Product Video

System
CPU Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53,1.8GHz
GPU Adreno 610
Operating System Android 13 (GMS)
RAM LPDDR4 4GB (default)/8GB (optional)
Storage eMMC 64G (default)/128GB (optional)
LCD 7 Inch Digital IPS Panel, 1280×800, 1000 nits
Screen Multi-point Capacitive Touch Screen
Audio Integrated microphone; Integrated speaker 2W
Camera

Front: 5.0 megapixel camera (optional)
Rear: 16.0 megapixel camera (optional)
Sensor Acceleration, gyro sensor, compass, ambient light sensor



Interface (On Tablet)
USB ×1 USB 3.0 Type-C (can not be used together with USB Type-A)
Micro SD Slot ×1 Micro SD card, Support up to 1T
SIM Socket ×1 Micro SIM Card slot
Ear jack 3.5mm headphone jack compliant with CTIA standard
Docking connector  POGO PIN×24



Extended Interface (Docking Station)
RS232 ×2
ACC ×1
Power ×1 (8-36V)
GPIO ×3 Input, 3x Output
USB TYPE-A  1x USB 2.0 Type A, (can not be used together with USB Type-C)
Analog Input ×1 (standard); ×2 (optional)
CANBUS ×1 (optional)
RS485 ×1 (optional)
RJ45 ×1 (100 Mbps, optional)
AV Input ×1 (optional)



Communication
GNSS GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna; External SMA antenna(optional)

Mobile Broadband
(NA Version)
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE-TDD: B41, External SMA antenna(optional)
LTE FDD: B1/B3/B5/B7/B8/B20

Mobile Broadband
(EM Version)

LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900MHz

WIFI 802.11a/b/g/n/ac; 2.4GHz&5GHz; external SMA antenna(optional)

Bluetooth 2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE; external SMA antenna(optional)

NFC (Optional) ISO/IEC 14443A, ISO/IEC 14443B PICC mode
ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed according to NFC Forum
digital protocol T4T platform and ISO-DEP
FeliCa PCD mode
MIFARE PCD encryption mechanism (MIFARE 1K/4K)
NFC Forum tags T1T,T2T,T3T,T4T and T5T NFCIP-1,NFCIP-2 protocol
NFC Forum certification for P2P, reader and card mode
FeliCa PICC mode
ISO/IEC 15693/ICODE VCD mode
NFC Forum-compliant embedded T4T for NDEF short record



Physical Characteristics
Power DC8-36V (ISO 7637-II compliant)
Battery 3.7V, 5000mAh battery
Physical Dimensions  207.4×137.4×30.1mm (W×H×D)
Weight 810g
Drop test 1.2m drop-resistance
IP rating IP67 (IEC 60529)
Vibration test
MIL-STD-810G
Work temperature -10°C ~ 65°C (14°F ~ 149°F)
Storage temperature -20°C ~ 70°C (-4°F ~ 158°F)
