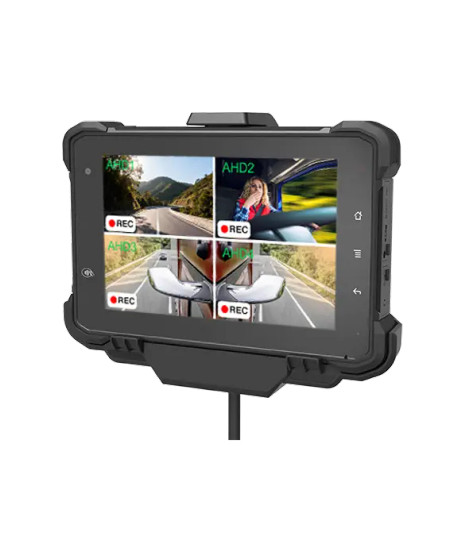

7-inch In-vehicle Rugged Tablet for Various Industrial Applications

VT-7A Pro AHD adopts advanced Android 13 operating system with support for multiple camera inputs, enabling visualization of vehicle's surroundings, ensuring driving safety for both on-road and off-road vehicles.

Features

	Android 13 OS Powered by Android 13, it ensures consistent, stable, and reliable performance with seamless and efficient operation of applications.
Ultra-Bright Screen With 1000 nits high brightness screen, readable in the sunlight environments.
	Rugged Design Compliant with IP67 rating and MIL-STD-810G standards, it offers robust resistance to water, steam, dust, and vibration.
ISO 7637-II Compliant with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.
	4-CH Camera Inputs Integrated with 4-channel AHD camera inputs, it can collect and transmit images of the surrounding environment of vehicles in real time.
Real-time Communication It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT 4 communication module, which is convenient for tracking management.

Accessories


Torx Wrench (T6,T8,T20)&Screws	Side View AHD Camera (optional)	Rear View AHD Camera (optional)	ADAS Camera (optional)	DMS Camera(optional)

Video Cable (optional)	USB Type-A to Type-C cable (optional)	Power adaptor (optional)	RAM 1" Double Ball Mount with Backing Plate (optional)

Product Video

System
CPU	Qualcomm Octa-core, 4×A73, 2.0GHz and 4×A53,1.8GHz
GPU	Adreno 610
Operating System	Android 13
RAM	LPDDR4 4GB (default)/8GB (optional)
Storage	eMMC 64G (default)/128GB (optional)
LCD	7 Inch Digital IPS Panel, 1280×800, 1000 nits
Screen	Multi-point Capacitive Touch Screen
Audio	Integrated microphone; Integrated speaker 2W
Camera	Rear: 16.0 megapixel camera (optional, can not be used simultaneously with AHD)
Sensor	Acceleration, Gyro sensor, Compass, Ambient light sensor

Interface (On Tablet)
USB	×1 USB 3.0 Type-C, 5V Input (can not be used together with USB Type-A)
Micro SD Slot	×1 Micro SD card, Support up to 1T
SIM Socket	×1 Micro SIM Card slot
Ear jack	3.5mm headphone jack compliant with CTIA standard
Docking connector	POGO PIN×24

Extended Interface (Docking Station)
RS232	RS232_1×1 (DEBUG, ttyHSL0)
RS232	RS232_2×1 (UARTO,ttyHSL2)
AHD	×4, Support AHD Input of 1920×1080 and 1280×720, PAL and NTSC
USB TYPE-A	1x USB 2.0 Type A, (can not be used together with USB Type-C)
GPIO	GPI×4: High Level Trigger
GPIO	GPO×2: Open Drain Output
ACC	x1 (0-36V)
Power	×1 (8-36V)
Power Output	×1 (8-36V output voltage)
CANBUS	×1 (UART3, ttyHSK1)
RJ45	×1 (100 Mbps, optional)

Communication
GNSS	GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna; External SMA Antenna(optional)

Mobile Broadband (NA Version)	LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
	LTE-TDD: B41
	Internal Antenna; External SMA Antenna(optional)

Mobile Broadband (EM Version)	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
	LTE TDD: B38/B39/B40/B41
	WCDMA: B1/B2/B4/B5/B8
	GSM: 850/900/1800/1900MHz
	Internal Antenna (default), External SMA Antenna (optional)

WIFI	802.11a/b/g/n/ac; 2.4GHz&5GHz; Internal Antenna (default); External SMA Antenna(optional)

Bluetooth	2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE; Internal Antenna (default)
Bluetooth	External SMA Antenna (optional)

NFC (Optional)	ISO/IEC 14443A, ISO/IEC 14443B PICC mode
	ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed according to NFC Forum
	Digital protocol T4T platform and ISO-DEP FeliCa PCD mode
	MIFARE PCD encryption mechanism (MIFARE 1K/4K)
	NFC Forum tags T1T, T2T, T3T, T4T and T5T NFCIP-1,NFCIP-2 protocol
	NFC Forum certification for P2P, reader and card mode
	FeliCa PICC mode
	ISO/IEC 15693/ICODE VCD mode
	NFC Forum-compliant embedded T4T for NDEF short record

Physical Characteristics
Power	USB Type-C/ Pogo pin 5V power input
Battery	3.7V, 5000mAh battery
Physical Dimensions	207.4×137.4×30.1mm (W×H×D)
Weight	810g
IP rating	IP67 (IEC 60529)
Vibration test	MIL-STD-810G
Work temperature	-10°C ~ 65°C (14°F ~ 149°F)
Storage temperature	-20°C ~ 70°C (-4°F ~ 158°F)
