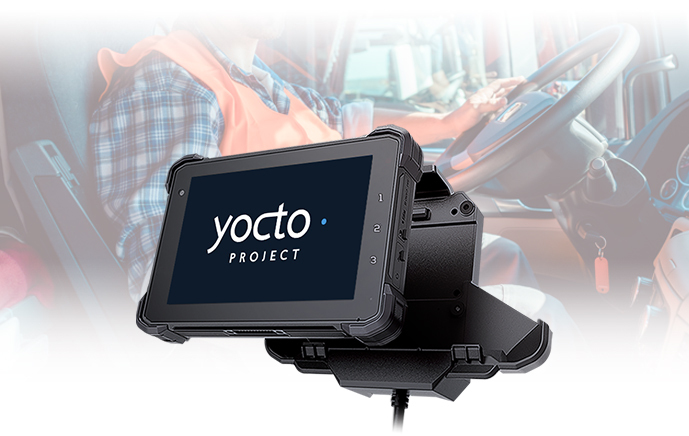

7 inch in-vehicle rugged tablet powered by Linux system

The rugged design, rich functions, and user-friendly system of the VT-7AL make it a trustworthy device for various industrial applications in extreme environments.

FEATURES

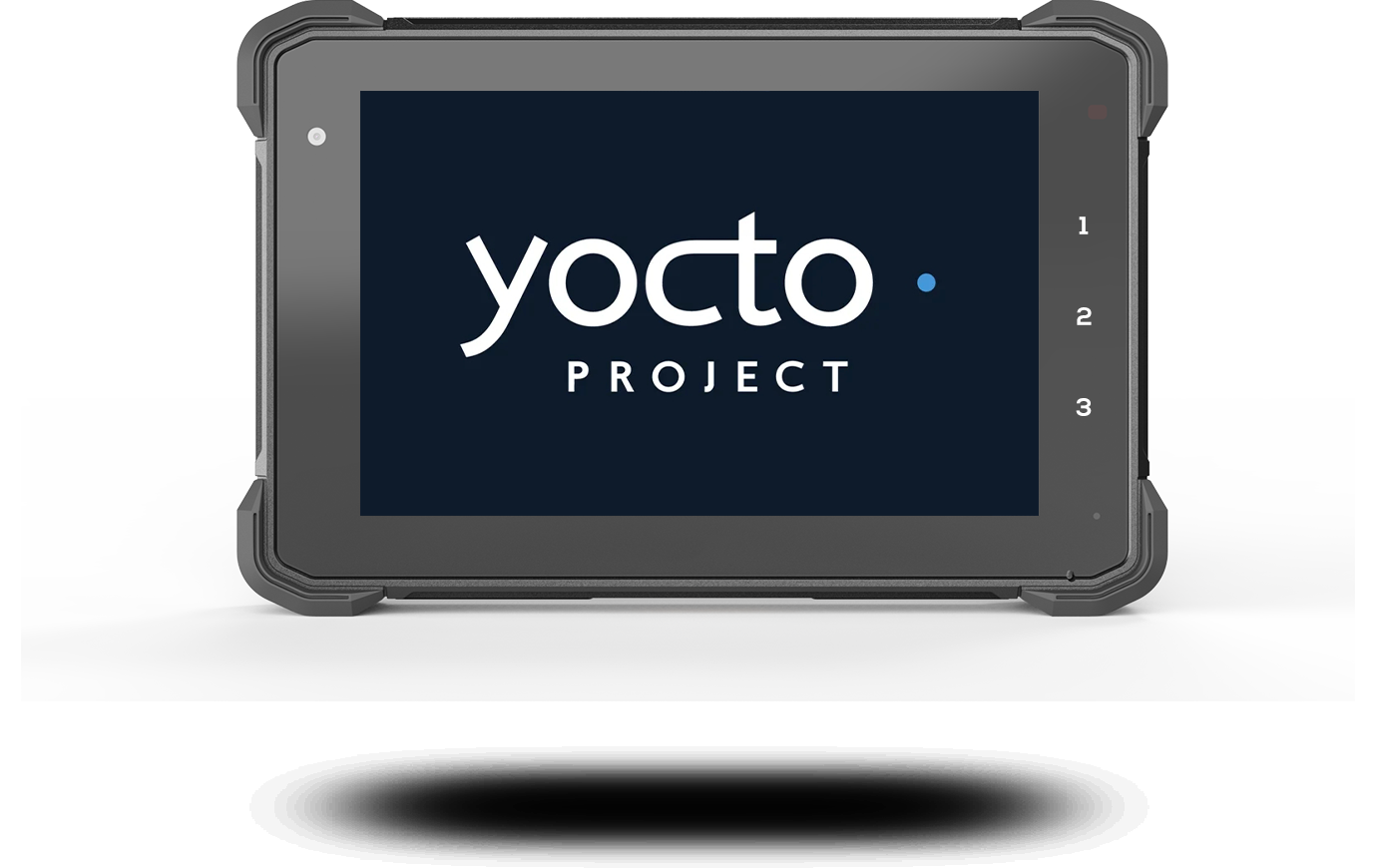

Yocto System Supports rich tools and processes for engineers to develop software more effectively according to their specific needs using the Yocto System.
		Qt Platform Supports the Qt 5.15 platform and various applications written based on Qt. Provides test demo programs written in Qt, which makes interface debugging and development more convenient and flexible.
Real-time Communication Built-in Wi-Fi, Bluetooth, GNSS, and 4G functions simplify tracking and managing device status.

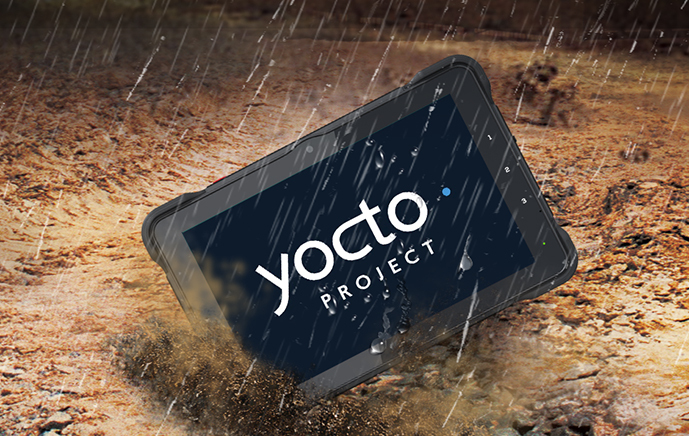

		IP67 Rugged Design Rugged IP67 design and 800 nits high brightness screen guarantee the application in varieties of harsh environments. suitable for vehicle, logistics, security, and many other industries.
ISO 7637-II ISO 7637-II standard transient voltage protection Withstands up to 174V 300ms car surge impact DC8-36V wide voltage power supply
		Strong Compatibility With rich interfaces of RS232, CAN Bus, RS485, GPIO etc., the VT-7AL is customizable to meet various needs.
Wide Application Field Rugged design and rich interfaces guarantee the application of IoT, IoV, and many industries with harsh environments.

System	CPU Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz
GPU	Adreno™ 702
OS	Yocto
RAM	LPDDR4 3GB (default)/4GB (optional)
Storage	eMMC 32GB (default)/64GB (optional)
Functional Module	LCD 7 Inch IPS Panel, 1280 × 800, 800 nits Screen Multi-point Capacitive Touch Screen Audio Integrated microphone, Integrated speaker 2W Sensor Acceleration, Gyro sensor, Compass, Ambient light sensor
Interface	1 × USB3.1 (can not be used simultaneously with USB Type-A) 1 × Micro SD card, Support up to 1T 1 × Micro SIM Card slot Standard 3.5mm earphone connector
Extended Interface (Docking station version)	RS232 × 2 POWER × 1 (8-36V) USB TYPE-A USB2.0 ×1 (can not be used simultaneously with USB Type-C) GPIO Input × 3, Output × 3 (standard); Input × 2, Output × 2 (optional) ACC × 1 (0-30V) CANBUS × 1 (optional) ANALOG INPUT × 2 (optional) RS485 × 1 (optional) RJ45 × 1 (optional) AV × 1 (optional)
Extended Interface (M12 connector version)	RS232 × 2 USB × 1 POWER × 1 (8-36V) GPIO Input × 3, Output × 3 ACC × 1 (0-30V) CANBUS × 1 (optional) RS485 × 1 (optional) RJ45 × 1 (optional)
Communication	Bluetooth 2.1 EDR/3.0 HS/4.2 LE/5.0 LE WLAN 802.11a/b/g/n/ac; 2.4GHz & 5GHz GNSS (NA Version) GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS NavIC, L1 + L5; Internal Antenna GNSS (EM Version) GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS, L1; Internal Antenna 2G/3G/4G (US Version) LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE TDD: B41 2G/3G/4G (EU Version) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: 850/900/1800/1900 MHz
Physical Characteristics	Power DC8-36V (ISO 7637-II compliant) Battery 3.7V, 5000mAh battery (only for docking station ver.) Dimensions (WxHxD) 207.4 × 137.4 × 30.1mm
Environment	Drop test 1.2m drop-resistance IP rating IP67 Vibration test MIL-STD-810G Operating temperature -10°C ~ 65°C (14°F ~ 149°F) Storage temperature -20°C ~ 70°C (-4°F ~ 158°F)
